Cheap 63-200mm PE Pipe Hydraulic Butt Fusion Welding Machine Hdpe Plastic Pipe Jointing Machine WP200B

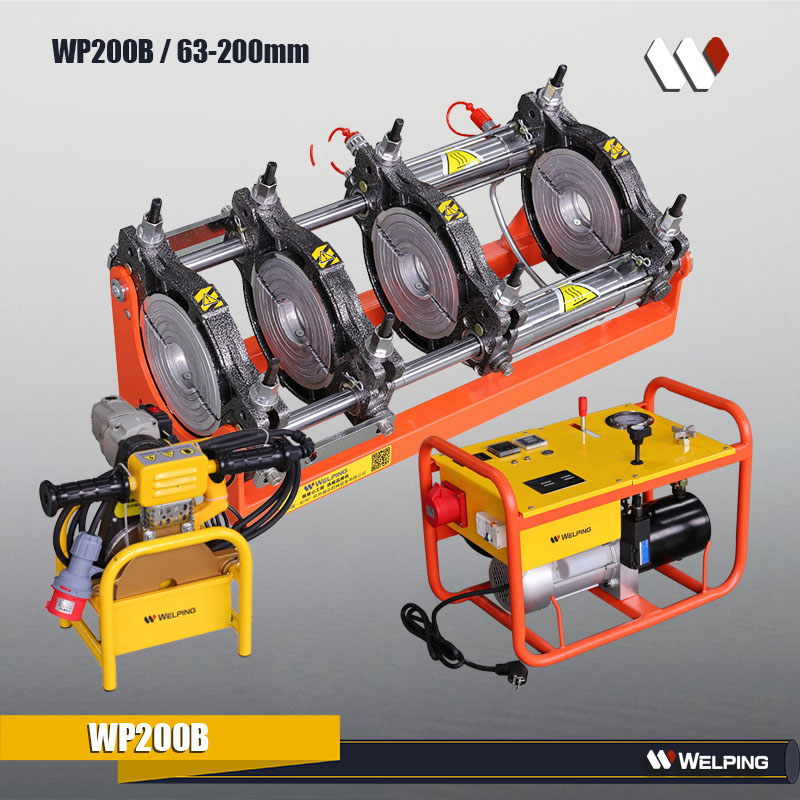

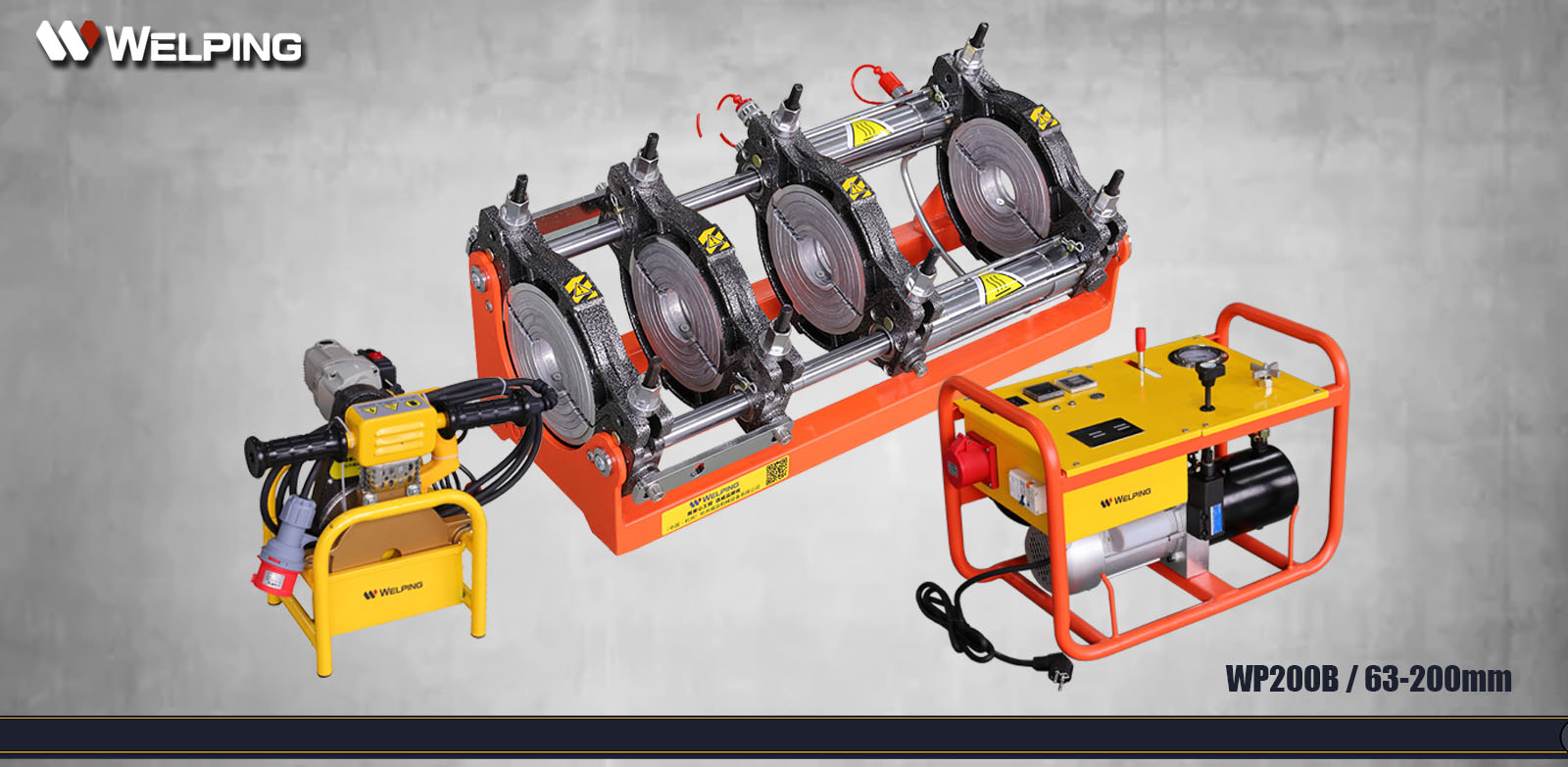

63mm/200mm Hydraulic HDPE Pipe Welding Machine WP200B

The WP200B butt fusion machine is a multi-purpose machine that has been specifically designed to weld pipes with diameters ranging from 63mm to 200mm. It is capable of butt fusion welding pipes and fittings of all pressure levels. This butt welding machine has a small footprint and lightweight design, whilst maintaining the ruggedness and long-lasting performance expected of any welding butt fusion machine.

The WP200B butt fusion welding machine is commonly used in the fields of municipal engineering, building construction, water supply and drainage pipe installation and maintenance. In pipeline connection, repair and renovation projects. Suitable for PE, PP, PVDF.

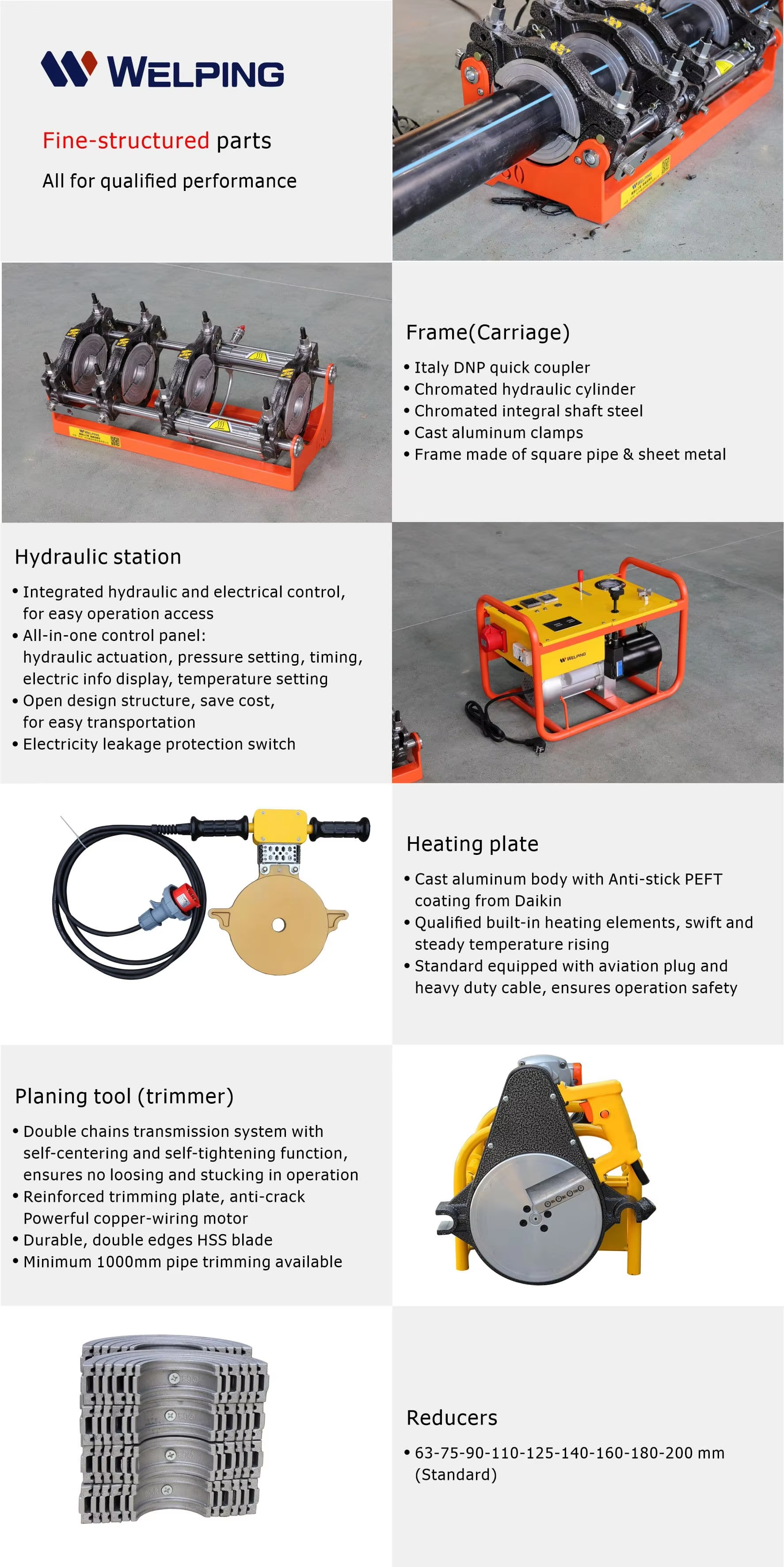

This 63-200mm hdpe pipe jointing machine Integrated die casting aluminum frame, a high-strength steel base with cylinder, provides stable heavy-duty performance.

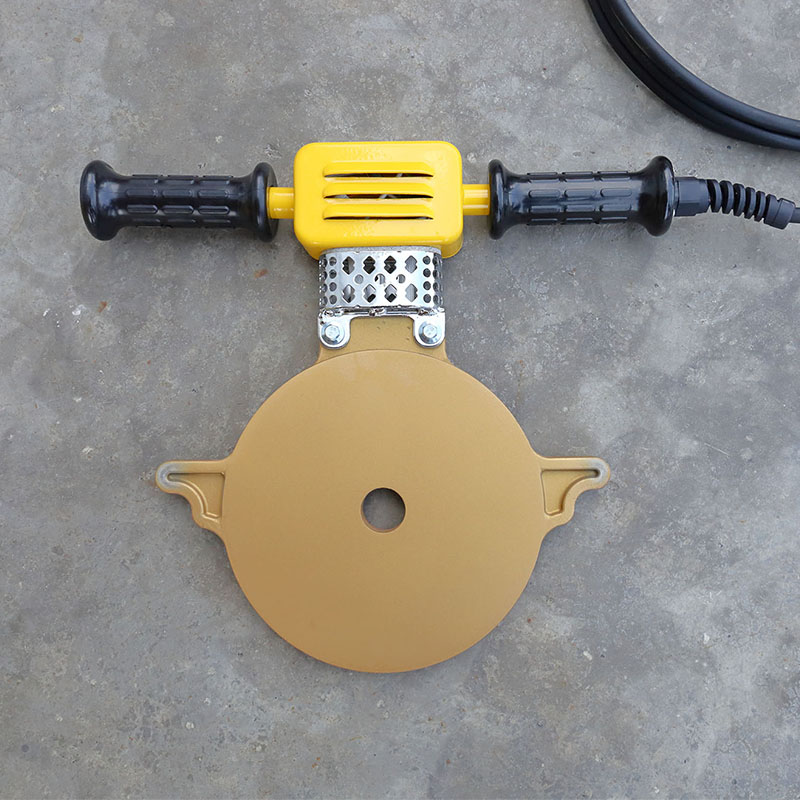

Heating plate with high quality PTFE coating, enables swift temperature control.

Hydraulic station of integrated enclosure shielding splash & dirt

The hdpe butt welding machine rapidly heats and melts the weld material, ensuring a strong and airtight welded joint. The heat fusion welding machine is easy to operate and maintain, and suitable for on-site construction and small projects.

Model	WP200B
Welding Range	63-75-90-110-125-140-160-180-200mm
Power Supply	220V/50Hz, 1PH ( 110V/60HZ,1PH is Optional)
Total Power	3.65KW
Heater	1.8KW
Trimmer	1.1KW
Hydraulic Station	0.75KW
Pressure Range	0-8 MPa
Max Temp	270ºC
Temperature Deviation	±5ºC
Hydraulic oil	L-HM46
Piston area	15.32 CM2
