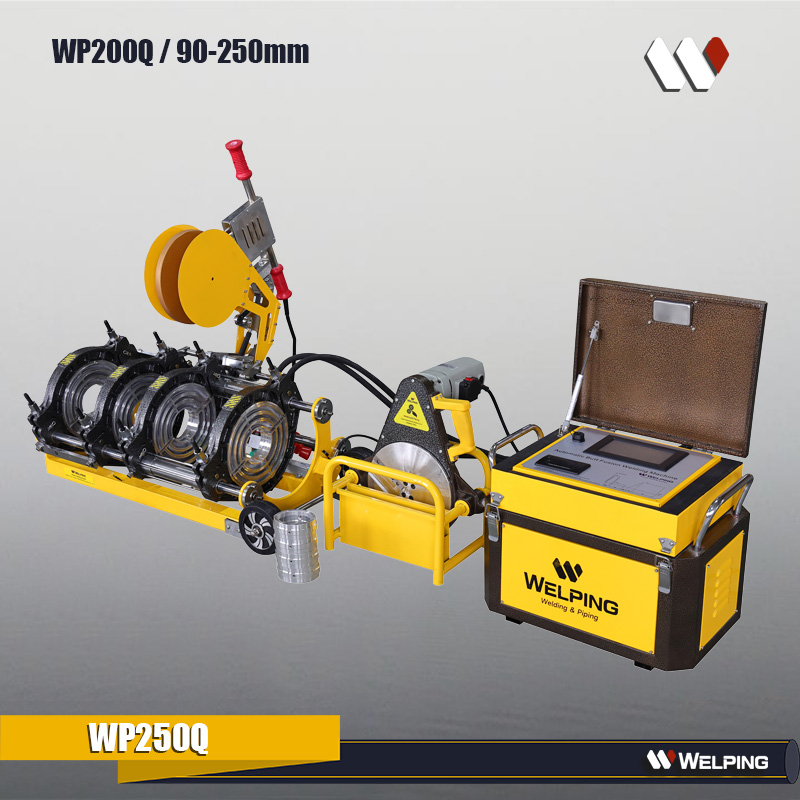

90-250mm CNC PE Pipe Hot Melt Machine Butt Fusion Welding Machine WP250Q

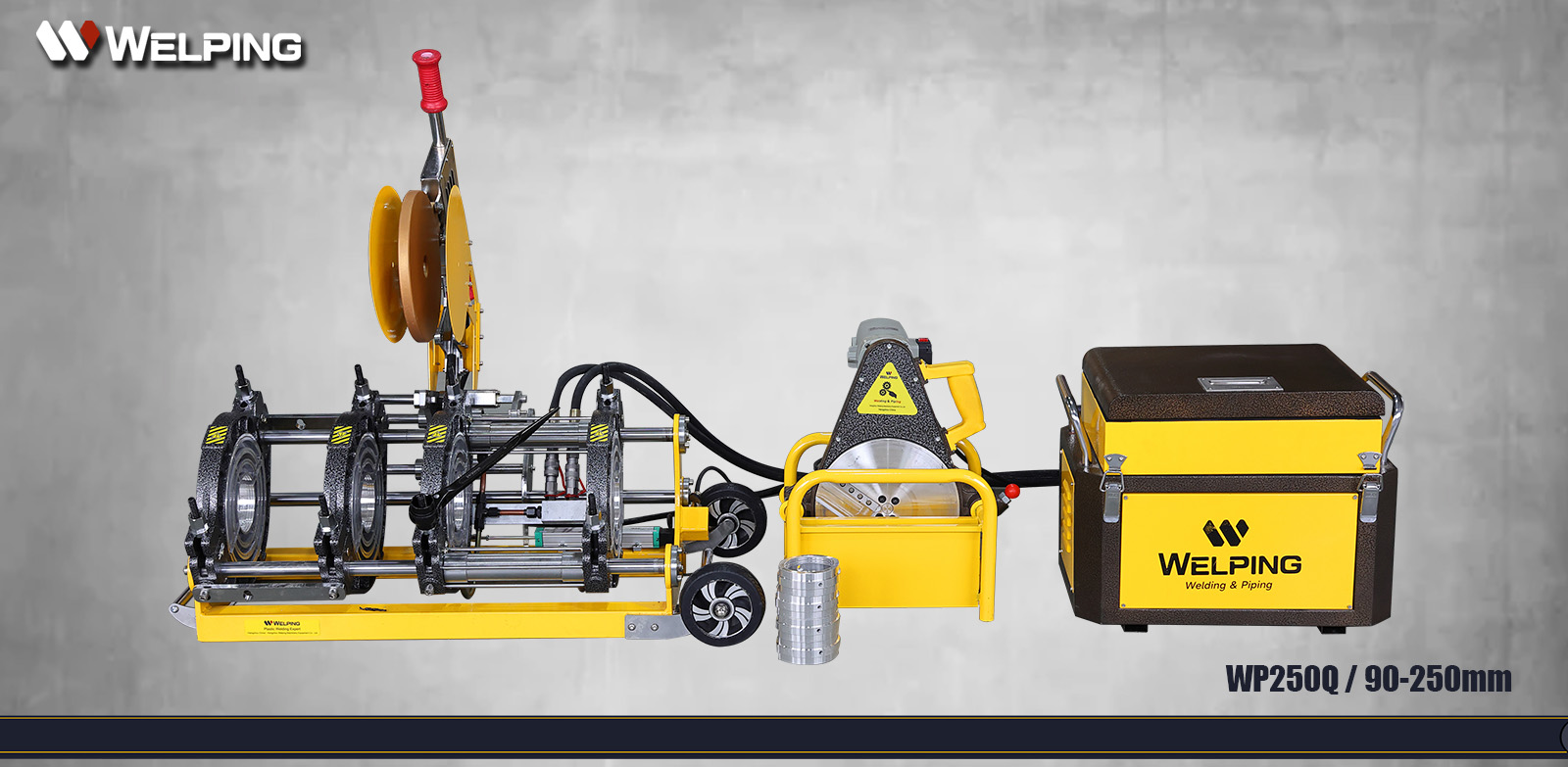

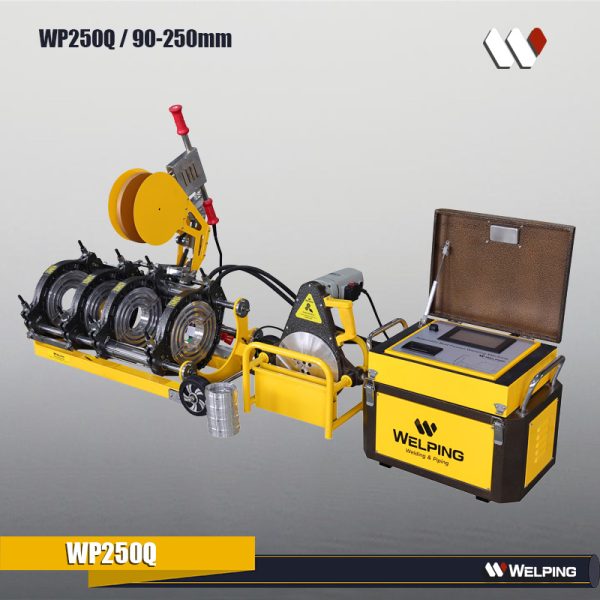

90-250mm CNC PE Pipe Fusion Machine WP250Q

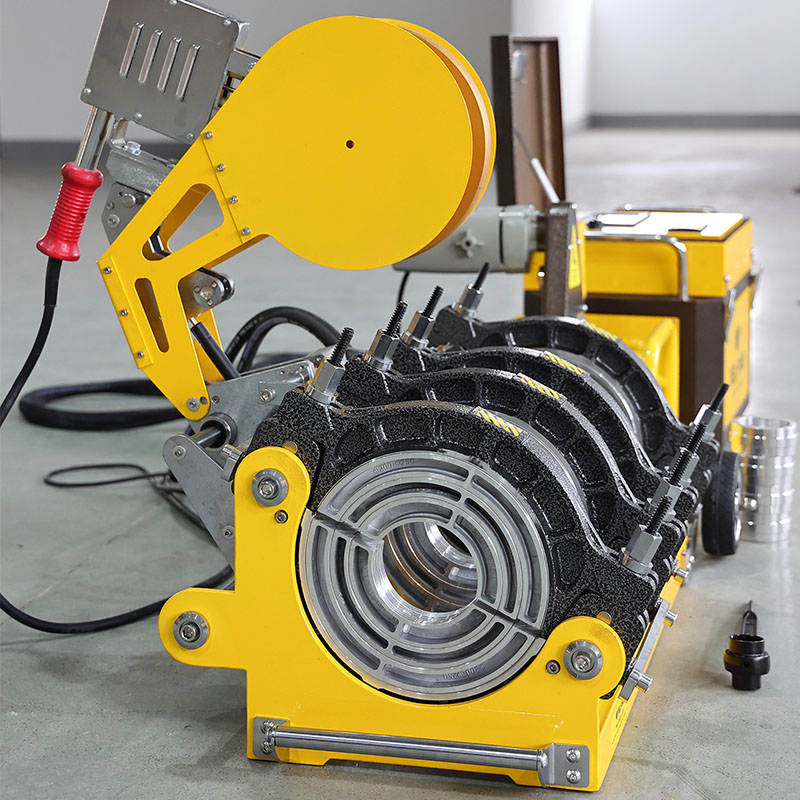

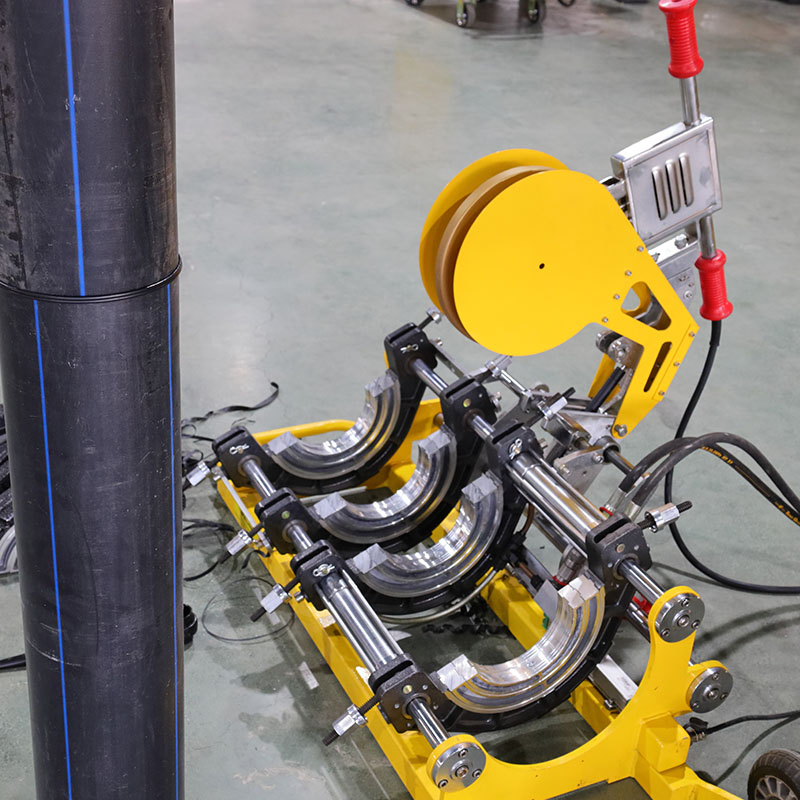

The WP250Q CNC butt fusion machine is a multi-purpose machine that has been specifically designed to weld pipes with diameters ranging from 90mm to 250mm. It is capable of butt fusion welding pipes and fittings of all pressure levels. This butt welding machine has a small footprint and lightweight design, whilst maintaining the ruggedness and long-lasting performance expected of any welding butt fusion machine.

WELPING full-auto butt welding machines, are designed to carry out butt fusion operations correctly and efficiently, for plastic pipes, material of PE, PP, PB, PVDF etc.
Suitable for use in applications of municipal drainage, natural gas, sewage, chemical, agricultural irrigation, and so on.

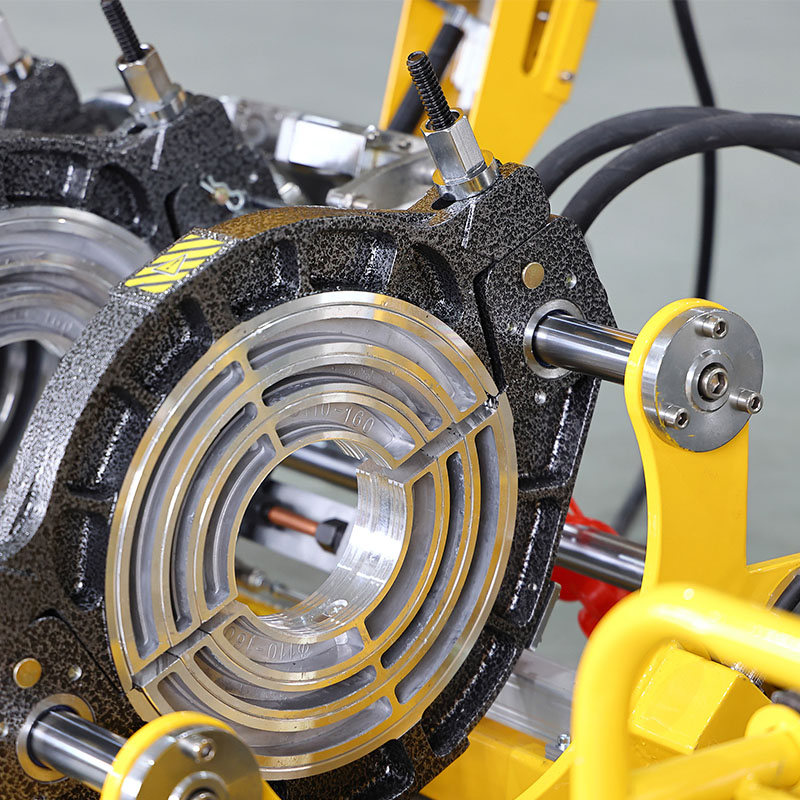

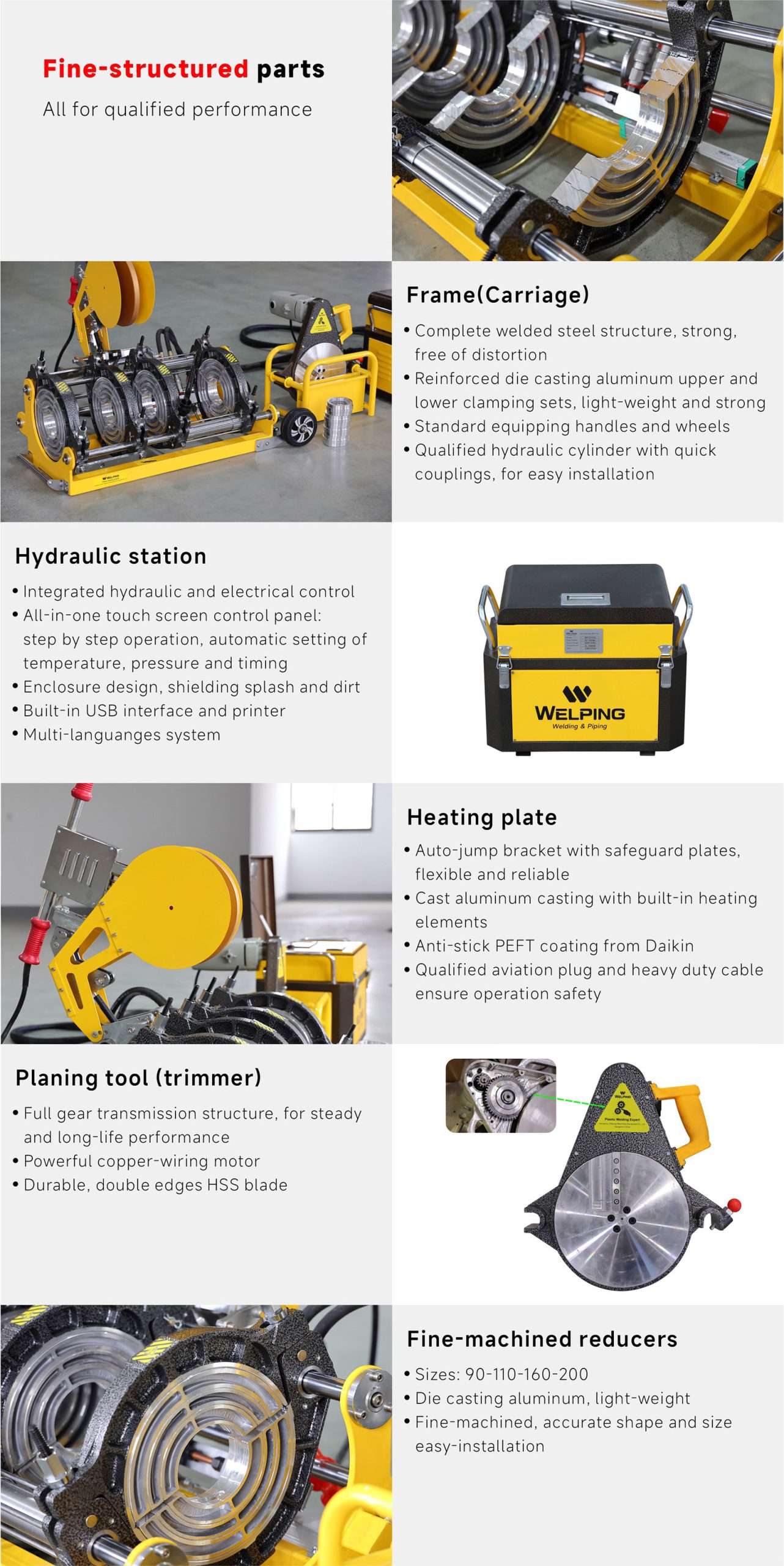

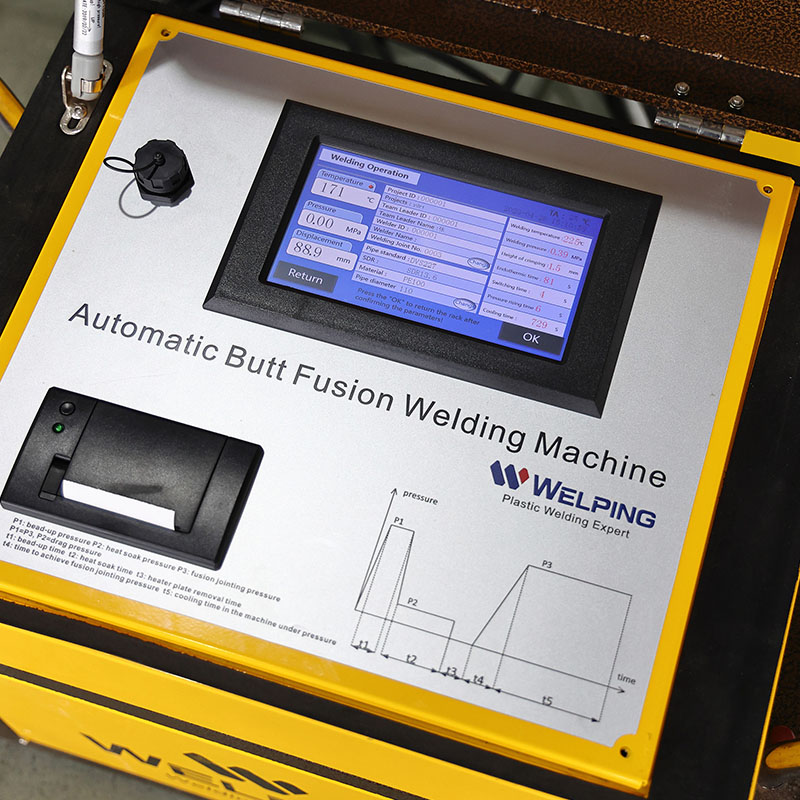

Precision die casting aluminum clamps, steel base with cylinder & auto-jump device, provides stable performance. Integrated digital control system with LCD display, welding parameters auto setting
Heating plate with high-quality PTFE coating enables swift temperature control.
To achieve a good jointing, a steady, precise, robust butt welding machine is critical. WELPING had been developing, manufacturing and distributing various butt fusion welding machine since 2005. It’s our pleasure to help you build a reputation in the piping project.

Model	WP250Q
Welding Range	90-110-125-140-160-180-200-225-250mm (63-75mm optional)
Power Supply	220V/50Hz, 1PH ( 110V/60HZ,1PH is Optional)
Total Power	5.05KW
Heater	2.3KW
Trimmer	2.0KW
Hydraulic Station	0.75KW
Pressure Range	0-8 MPa
Max Temp	270ºC
Temperature Deviation	±5ºC
Hydraulic oil	L-HM46
Piston Area	11 CM2

To help customers succeed in the field of plastic pipe jointing, WELPING has focused on thermoplastic welding equipment developing, manufacturing and sales since 2005. We aim to bring industrial-level design, performance and quality together help you build reputation.
To suit different welding applications and market requirements, WELPING enjoy high reputation for exportation, benefiting from the steady product quality performance. Thanks to our experienced engineers, WELPING can meet you OEM and ODM requirements. At the same time, we are improving the product line to better suit field requirements.
WELPING knows the importance of fast delivery for our customers. To better production lead time, we consolidate critical production procedures into management, like aluminum die casting, laser cutting, metal fabrication, CNC machine powder coating etc. For standard items and light-OEM items, WELPING can finish in ar10-15 days.
